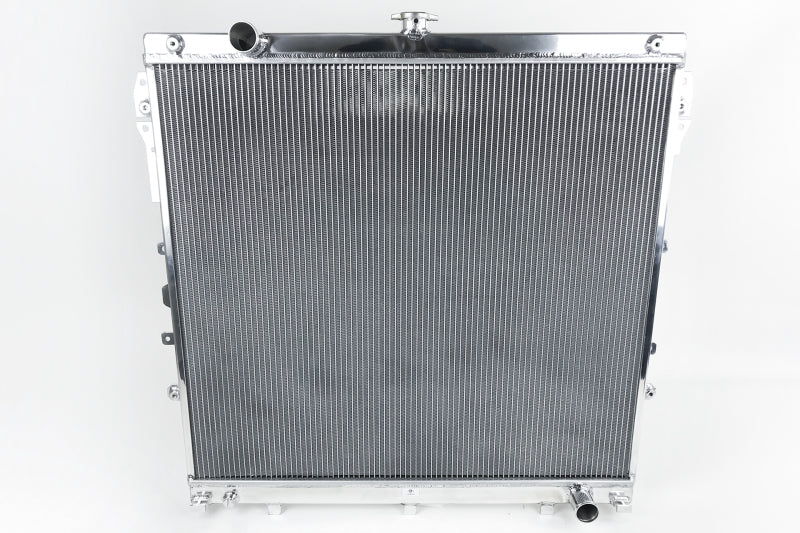

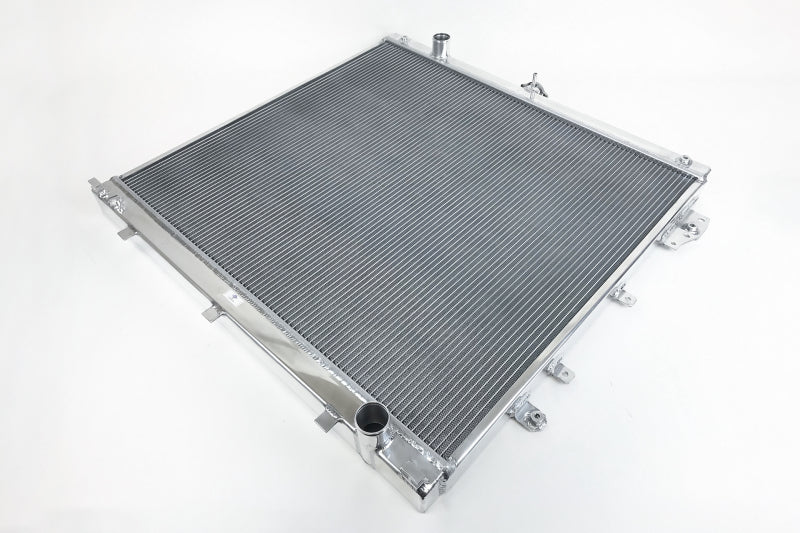

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Tundra/Sequoia running at its best, a CSF Heavy-Duty/High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on and off road, a heavy-duty performance radiator is a must-have for off-roaders, overlanders, and adventurers. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
CSF manufactures the most advanced and efficient radiator in the industry for your Tundra/Sequoia. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

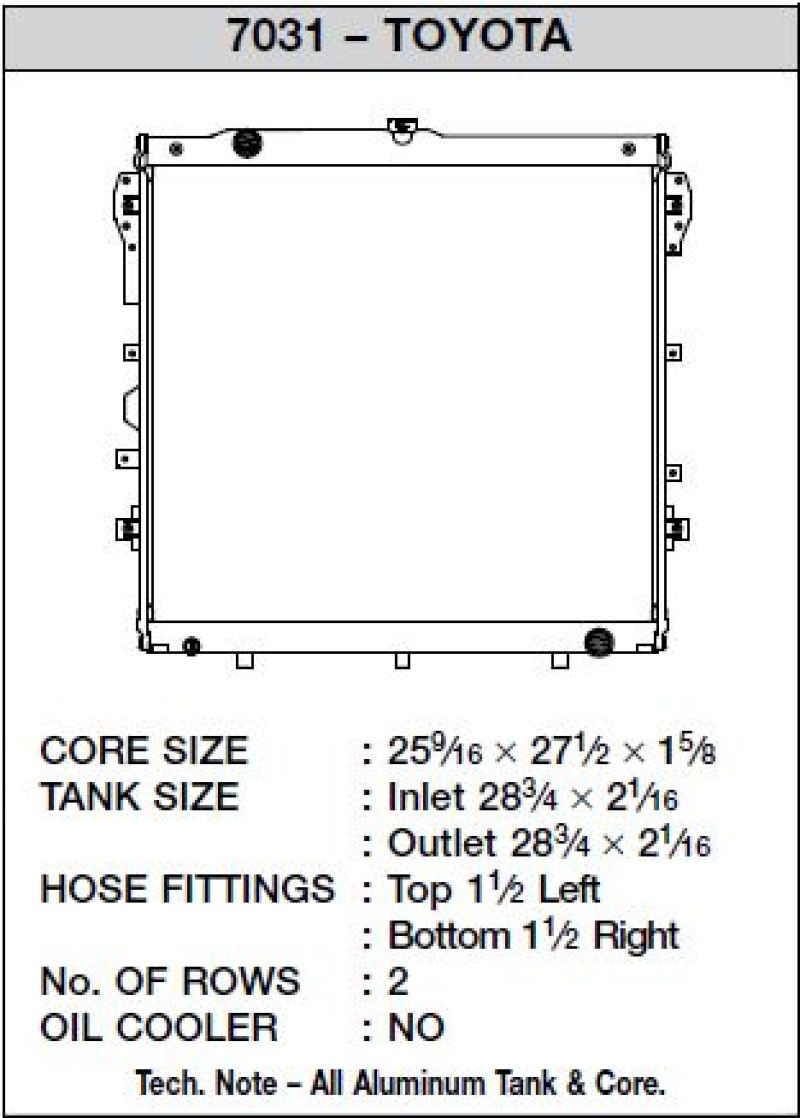

The CSF #7031 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
- "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud
- Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
- 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
- CNC Machined Brackets and Fittings for Superb Fit and Durability
- CNC Machined "Quick-Connect" Inlet/Outlet Connections
- All-Aluminum Race Style Drain Plug
- 1-Hour "Mirror Finish" Hand Polish
Fitment:
2007 Toyota Tundra Base
2007 Toyota Tundra Limited
2007 Toyota Tundra SR5
2008 Toyota Sequoia Limited
2008 Toyota Sequoia Platinum
2008 Toyota Sequoia SR5
2008 Toyota Tundra Base
2008 Toyota Tundra Limited
2008 Toyota Tundra SR5
2009 Toyota Sequoia Limited
2009 Toyota Sequoia Platinum
2009 Toyota Sequoia SR5
2009 Toyota Tundra Base
2009 Toyota Tundra Limited
2009 Toyota Tundra SR5
2010 Toyota Sequoia Limited
2010 Toyota Sequoia Platinum
2010 Toyota Sequoia SR5
2010 Toyota Tundra Base
2010 Toyota Tundra Limited
2010 Toyota Tundra Platinum
2010 Toyota Tundra SR5
2011 Toyota Sequoia Limited
2011 Toyota Sequoia Platinum
2011 Toyota Sequoia SR5
2011 Toyota Tundra Base
2011 Toyota Tundra Limited
2011 Toyota Tundra Platinum
2011 Toyota Tundra SR5
2012 Toyota Sequoia Limited
2012 Toyota Sequoia Platinum
2012 Toyota Sequoia SR5
2012 Toyota Tundra Base
2012 Toyota Tundra Limited
2012 Toyota Tundra Platinum
2013 Toyota Sequoia Limited
2013 Toyota Sequoia Platinum
2013 Toyota Sequoia SR5
2013 Toyota Tundra Base
2013 Toyota Tundra Limited
2013 Toyota Tundra Platinum
2014 Toyota Sequoia Limited
2014 Toyota Sequoia Platinum
2014 Toyota Sequoia SR5
2014 Toyota Tundra 1794 Edition
2014 Toyota Tundra Limited
2014 Toyota Tundra Platinum
2014 Toyota Tundra SR
2014 Toyota Tundra SR5
2015 Toyota Sequoia Limited
2015 Toyota Sequoia Platinum
2015 Toyota Sequoia SR5
2015 Toyota Tundra 1794 Edition
2015 Toyota Tundra Limited
2015 Toyota Tundra Platinum
2015 Toyota Tundra SR
2015 Toyota Tundra SR5
2015 Toyota Tundra TRD Pro
2016 Toyota Sequoia Limited
2016 Toyota Sequoia Platinum
2016 Toyota Sequoia SR5
2016 Toyota Tundra 1794 Edition
2016 Toyota Tundra Limited
2016 Toyota Tundra Platinum
2016 Toyota Tundra SR
2016 Toyota Tundra SR5
2016 Toyota Tundra TRD Pro
2017 Toyota Sequoia Limited
2017 Toyota Sequoia Platinum
2017 Toyota Sequoia SR5
2017 Toyota Tundra 1794 Edition
2017 Toyota Tundra Limited
2017 Toyota Tundra Platinum
2017 Toyota Tundra SR
2017 Toyota Tundra SR5
2017 Toyota Tundra TRD Pro
2018 Toyota Sequoia Limited
2018 Toyota Sequoia Platinum
2018 Toyota Sequoia SR5
2018 Toyota Sequoia TRD Sport
2018 Toyota Tundra 1794 Edition
2018 Toyota Tundra Limited
2018 Toyota Tundra Platinum
2018 Toyota Tundra SR
2018 Toyota Tundra SR5
2019 Toyota Sequoia Limited
2019 Toyota Sequoia Platinum
2019 Toyota Sequoia SR5
2019 Toyota Sequoia TRD Sport
2019 Toyota Tundra 1794 Edition
2019 Toyota Tundra Limited
2019 Toyota Tundra Platinum
2019 Toyota Tundra SR
2019 Toyota Tundra SR5
2019 Toyota Tundra TRD Pro
2020 Toyota Sequoia Limited
2020 Toyota Sequoia Platinum
2020 Toyota Sequoia SR5
2020 Toyota Sequoia TRD Pro
2020 Toyota Sequoia TRD Sport
2020 Toyota Tundra 1794 Edition
2020 Toyota Tundra Limited
2020 Toyota Tundra Platinum
2020 Toyota Tundra SR
2020 Toyota Tundra SR5
2020 Toyota Tundra TRD Pro
2021 Toyota Sequoia Limited
2021 Toyota Sequoia Nightshade
2021 Toyota Sequoia Platinum
2021 Toyota Sequoia SR5
2021 Toyota Sequoia TRD Pro
2021 Toyota Sequoia TRD Sport
2021 Toyota Tundra 1794 Edition
2021 Toyota Tundra Limited
2021 Toyota Tundra Nightshade
2021 Toyota Tundra Platinum
2021 Toyota Tundra SR
2021 Toyota Tundra SR5
2021 Toyota Tundra Trail
2021 Toyota Tundra TRD Pro
2022 Toyota Sequoia Limited
2022 Toyota Sequoia Nightshade
2022 Toyota Sequoia Platinum
2022 Toyota Sequoia SR5
2022 Toyota Sequoia TRD Pro
2022 Toyota Sequoia TRD Sport
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: N |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: t |
