CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 370Z/G37 running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. The Triple-Pass Flow Structure allows the coolant to flow across the core of the radiator three times before exiting for lowest outlet temperatures possible. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
CSF manufactures the most advanced and efficient radiator in the industry for your 370Z/G37. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.
The CSF #7012T Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
- "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud
- Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
- 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
- CNC Machined Brackets and Fittings for Superb Fit and Durability
- CNC Machined "Quick-Connect" Inlet/Outlet Connections

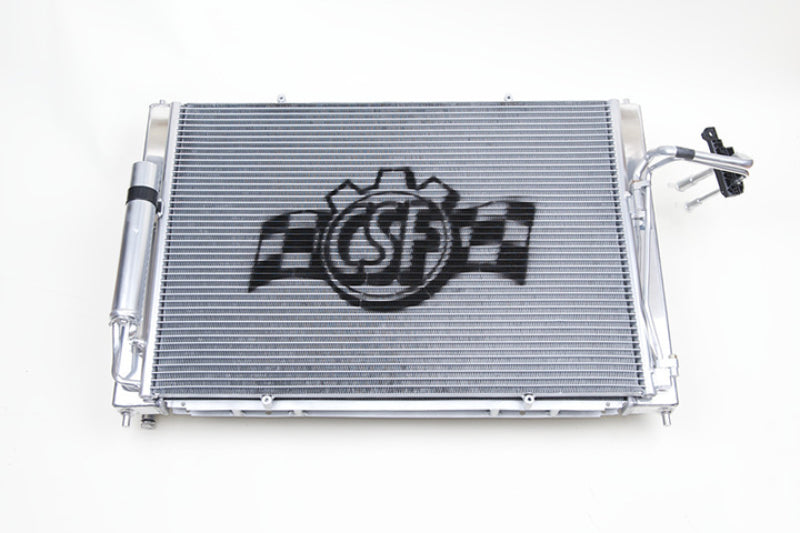

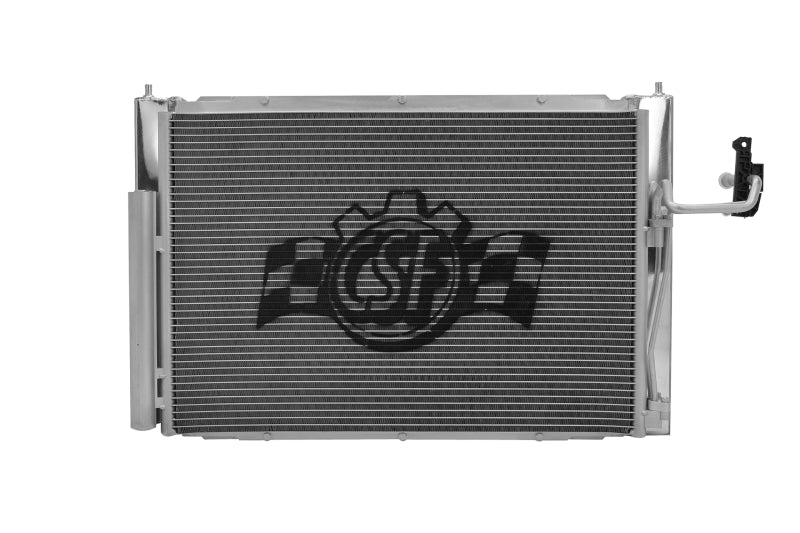

- Includes both the Radiator and AC Condenser
- All-Aluminum Race Style Drain Plug
- Triple-Pass Radiator Design
- Smooth Satin Finish
Fitment:
2007 Infiniti G35 Base
2007 Infiniti G35 Journey
2007 Infiniti G35 Sport
2007 Infiniti G35 X
2008 Infiniti G35 Base
2008 Infiniti G35 Journey
2008 Infiniti G35 Sport
2008 Infiniti G35 X
2008 Infiniti G37 Base
2008 Infiniti G37 Journey
2008 Infiniti G37 Sport
2009 Infiniti G37 Base
2009 Infiniti G37 Journey
2009 Infiniti G37 Sport
2009 Infiniti G37 X
2009 Nissan 370Z Base
2009 Nissan 370Z Nismo
2009 Nissan 370Z Touring
2010 Infiniti G37 Base
2010 Infiniti G37 Journey
2010 Infiniti G37 Sport
2010 Infiniti G37 X
2010 Nissan 370Z 40th Anniversary Edition
2010 Nissan 370Z Base
2010 Nissan 370Z Nismo
2010 Nissan 370Z Touring
2011 Infiniti G37 Base
2011 Infiniti G37 IPL
2011 Infiniti G37 Journey
2011 Infiniti G37 Sport
2011 Infiniti G37 X
2011 Nissan 370Z Base
2011 Nissan 370Z Nismo
2011 Nissan 370Z Touring
2012 Infiniti G37 Base
2012 Infiniti G37 IPL
2012 Infiniti G37 Journey
2012 Infiniti G37 Sport
2012 Infiniti G37 X
2012 Nissan 370Z Base
2012 Nissan 370Z Nismo
2012 Nissan 370Z Touring
2013 Infiniti G37 Base
2013 Infiniti G37 IPL
2013 Infiniti G37 Journey
2013 Infiniti G37 Sport
2013 Infiniti G37 X
2013 Nissan 370Z Base
2013 Nissan 370Z Nismo
2013 Nissan 370Z Touring
2014 Infiniti Q60 Base
2014 Infiniti Q60 IPL
2014 Infiniti Q60 Journey
2014 Infiniti Q60 S
2014 Nissan 370Z Base
2014 Nissan 370Z Nismo
2014 Nissan 370Z Touring
2015 Infiniti Q60 Base
2015 Infiniti Q60 IPL
2015 Infiniti Q60 Journey
2015 Infiniti Q60 S
2015 Infiniti Q60 S Limited
2015 Nissan 370Z Base
2015 Nissan 370Z Nismo
2015 Nissan 370Z Nismo Tech
2015 Nissan 370Z Sport
2015 Nissan 370Z Sport Tech
2015 Nissan 370Z Touring
2015 Nissan 370Z Touring Sport
2016 Nissan 370Z Base
2016 Nissan 370Z Nismo
2016 Nissan 370Z Nismo Tech
2016 Nissan 370Z Sport
2016 Nissan 370Z Sport Tech
2016 Nissan 370Z Touring
2016 Nissan 370Z Touring Sport
2017 Nissan 370Z Base
2017 Nissan 370Z Nismo
2017 Nissan 370Z Nismo Tech
2017 Nissan 370Z Sport
2017 Nissan 370Z Sport Tech
2017 Nissan 370Z Touring
2017 Nissan 370Z Touring Sport
2018 Nissan 370Z Base
2018 Nissan 370Z Heritage Edition
2018 Nissan 370Z Nismo Tech
2018 Nissan 370Z Sport
2018 Nissan 370Z Sport Tech
2018 Nissan 370Z Touring
2018 Nissan 370Z Touring Sport
2019 Nissan 370Z Base
2019 Nissan 370Z Heritage Edition
2019 Nissan 370Z Nismo
2019 Nissan 370Z Sport
2019 Nissan 370Z Sport Touring
2019 Nissan 370Z Touring
2020 Nissan 370Z Base
2020 Nissan 370Z Nismo
2020 Nissan 370Z Sport
2020 Nissan 370Z Sport Touring
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: N |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: t |
