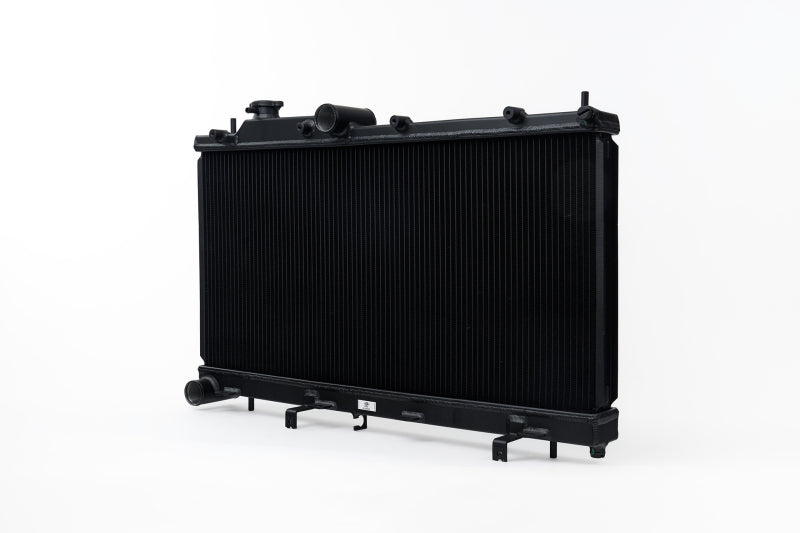

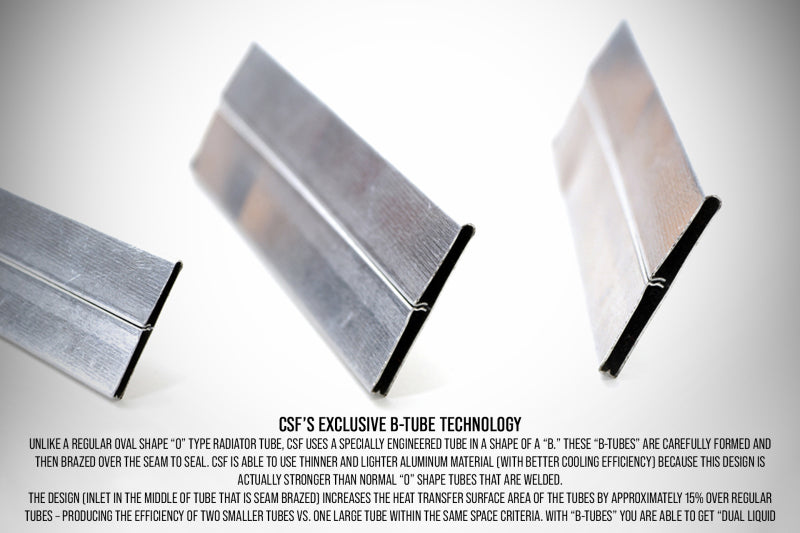

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your WRX/STI running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
CSF manufactures the most advanced and efficient radiator in the industry for your WRX/STI. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.
The CSF #7095B Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

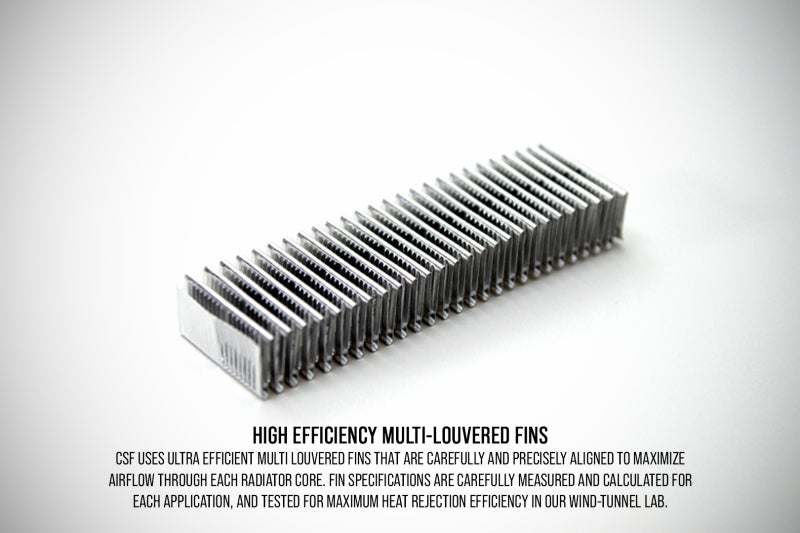

- Core Featured Ultra Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- High-Performance Core Features CSF's Exclusive B-Tube Technology

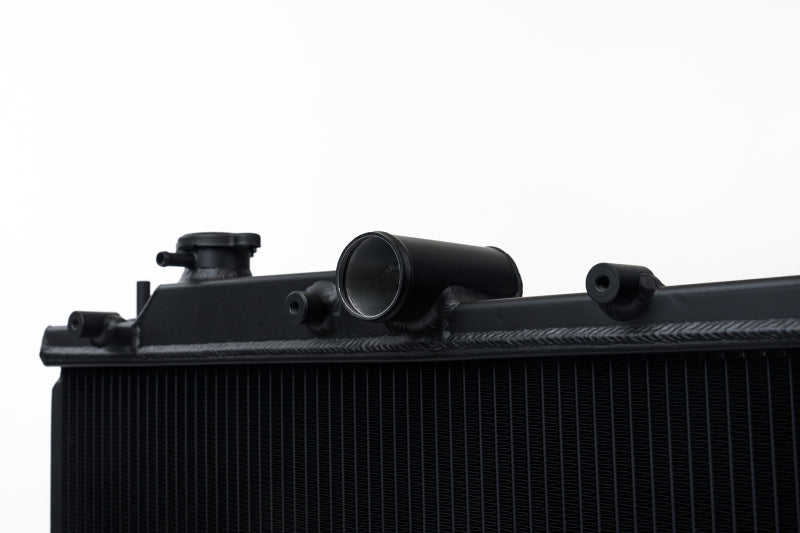

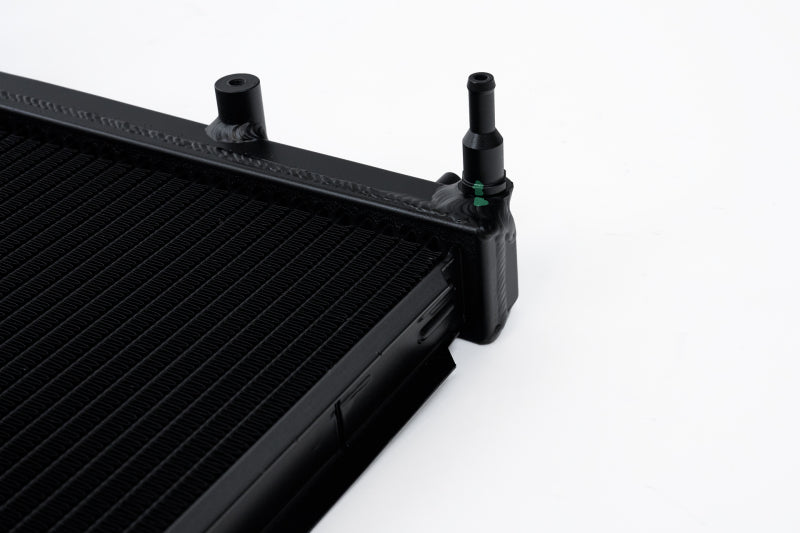

- Innovative "Multi-Fit" Combo Pipe and Plug Design, Included
- True "Drop-in Fit" Requires No Modifications to Install
- 100% All-Aluminum TIG-Welded Construction
- Black Finish for High-End Stealth Look
- Individually Leak and Pressure Tested
- CNC Machined Mounting Brackets
- For Manual Transmission Only
- Supersedes CSF #7042
Fitment:
2008 Subaru Impreza WRX
2008 Subaru Impreza WRX STI
2009 Subaru Impreza WRX
2009 Subaru Impreza WRX STI
2010 Subaru Impreza WRX
2010 Subaru Impreza WRX STI
2011 Subaru Impreza WRX
2011 Subaru Impreza WRX STI
2012 Subaru Impreza WRX
2012 Subaru Impreza WRX STI
2013 Subaru Impreza WRX
2013 Subaru Impreza WRX STI
2014 Subaru Impreza WRX
2014 Subaru Impreza WRX STI
2015 Subaru WRX Base
2015 Subaru WRX Limited
2015 Subaru WRX Premium
2016 Subaru WRX Base
2016 Subaru WRX Limited
2016 Subaru WRX Premium
2017 Subaru WRX Base
2017 Subaru WRX Limited
2017 Subaru WRX Premium
2018 Subaru WRX Base
2018 Subaru WRX Limited
2018 Subaru WRX Premium
2019 Subaru WRX Base
2019 Subaru WRX Limited
2019 Subaru WRX Premium
2020 Subaru WRX Base
2020 Subaru WRX Limited
2020 Subaru WRX Premium
2021 Subaru WRX Base
2021 Subaru WRX Limited
2021 Subaru WRX Premium
|
