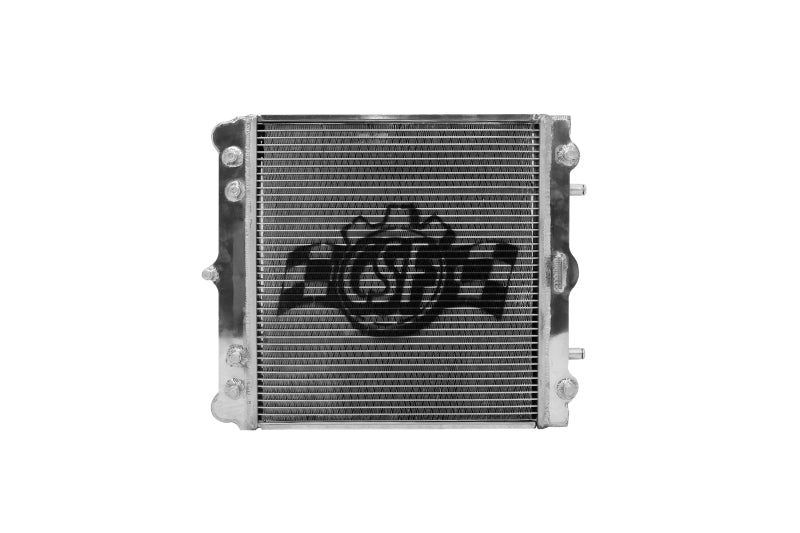

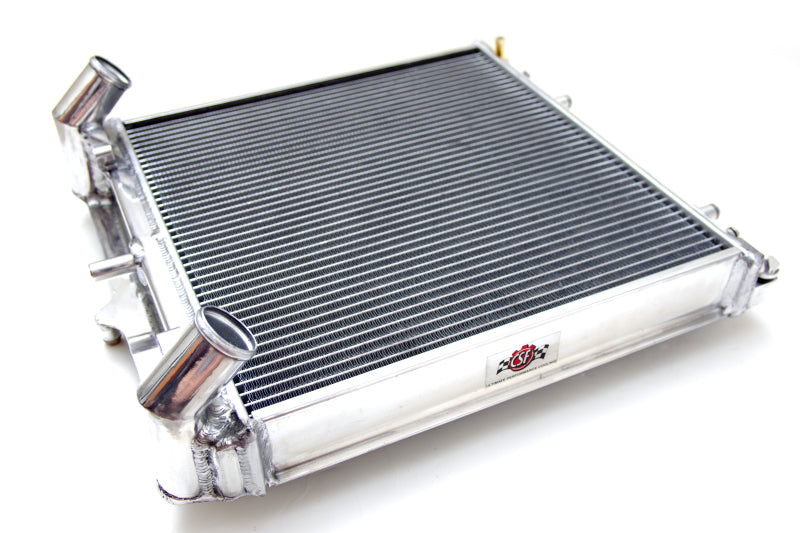

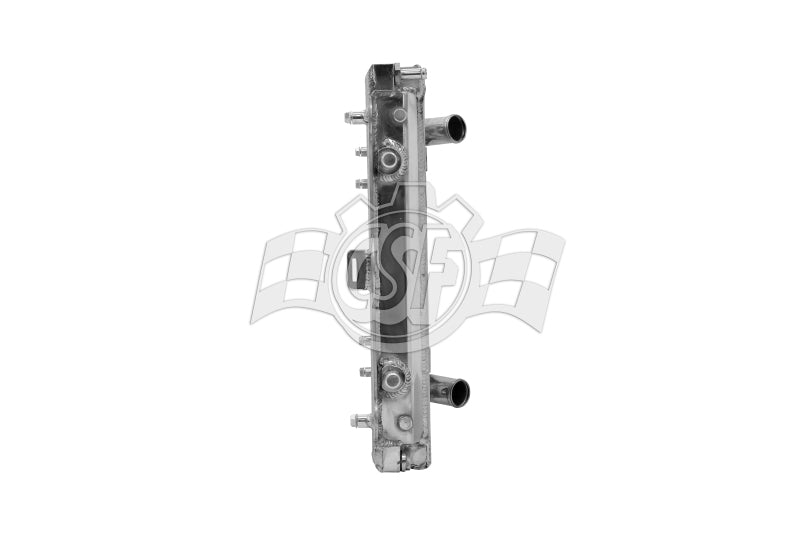

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 996 911/986 Boxster running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
CSF manufactures the most advanced and efficient radiator in the industry for your 996 911/986 Boxster. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.
The CSF #7044 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
- High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement

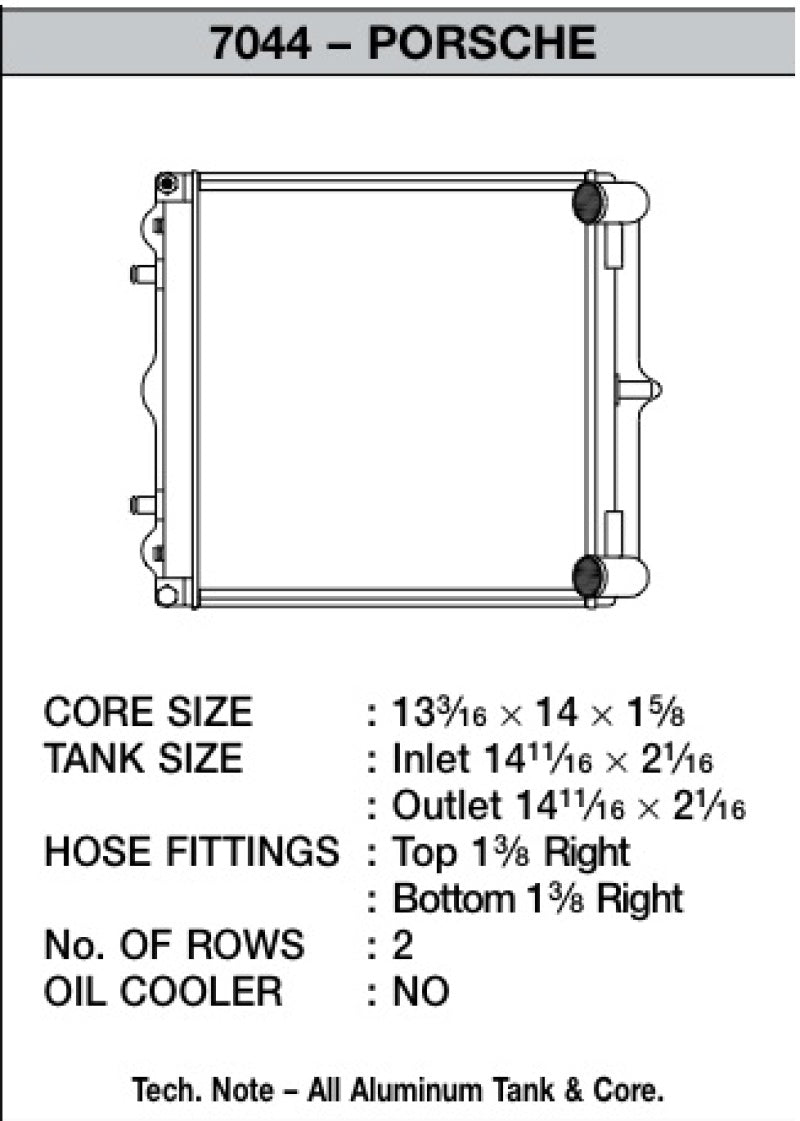

- 2-Row 42mm Core Featuring CSF's Exclusive B-Tube Technology (+20% Efficiency)
- Plug-and-Play "Drop-in" Fit with No Modifications Required for Installation

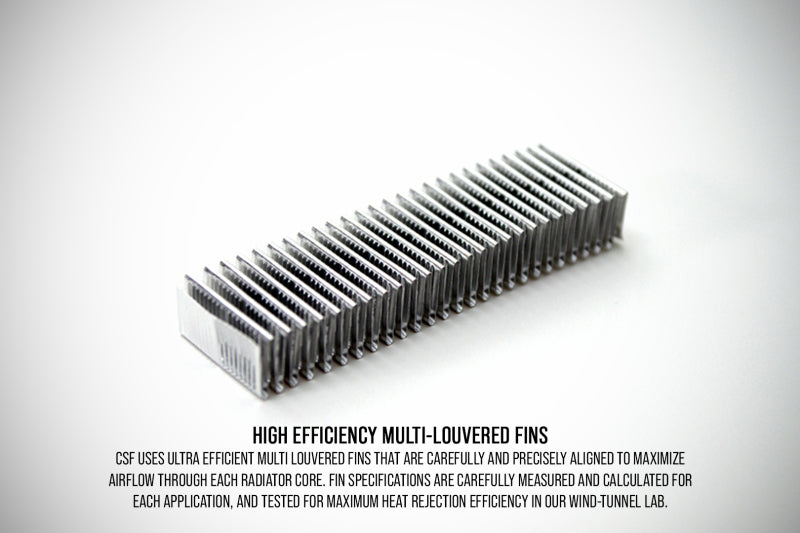

- 6.5mm Fin Height w/ Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined Brackets and Fittings for Superb Fit and Durability
- All-Aluminum Design with 100% TIG-Welded End Tanks
- OEM-Style Machined Inlet/Outlet Connections
- Accepts OEM AC Condenser and Fan Shroud
- Individually Leak and Pressure Tested
- Smooth Satin Finish
Fitment:
1997 Porsche Boxster Base
1998 Porsche 911 Carrera
1998 Porsche 911 Carrera 4
1998 Porsche 911 Carrera 4S
1998 Porsche 911 Carrera S
1998 Porsche 911 Targa
1998 Porsche Boxster Base
1999 Porsche 911 Carrera
1999 Porsche 911 Carrera 4
1999 Porsche Boxster Base
2000 Porsche 911 Carrera
2000 Porsche 911 Carrera 4
2000 Porsche Boxster Roadster
2000 Porsche Boxster Roadster S
2001 Porsche 911 Carrera
2001 Porsche 911 Carrera 4
2001 Porsche 911 Turbo
2001 Porsche Boxster Roadster
2001 Porsche Boxster Roadster S
2002 Porsche 911 Carrera
2002 Porsche 911 Carrera 4
2002 Porsche 911 Carrera 4S
2002 Porsche 911 GT2
2002 Porsche 911 Targa
2002 Porsche 911 Turbo
2002 Porsche Boxster Roadster
2002 Porsche Boxster Roadster S
2003 Porsche 911 Carrera
2003 Porsche 911 Carrera 4
2003 Porsche 911 Carrera 4S
2003 Porsche 911 GT2
2003 Porsche 911 Turbo
2003 Porsche Boxster Roadster
2003 Porsche Boxster Roadster S
2004 Porsche 911 40th Anniversary Edition
2004 Porsche 911 Carrera
2004 Porsche 911 Carrera 4
2004 Porsche 911 Carrera 4S
2004 Porsche 911 GT2
2004 Porsche 911 GT3
2004 Porsche 911 Turbo
2004 Porsche Boxster Base
2004 Porsche Boxster S
2004 Porsche Boxster S Special Edition
2005 Porsche 911 Carrera
2005 Porsche 911 Carrera 4S
2005 Porsche 911 Carrera S
2005 Porsche 911 GT2
2005 Porsche 911 GT3
2005 Porsche 911 Turbo
2005 Porsche 911 Turbo S
2005 Porsche Boxster Base
2005 Porsche Boxster S
2006 Porsche 911 Carrera
2006 Porsche 911 Carrera 4
2006 Porsche 911 Carrera 4S
2006 Porsche 911 Carrera S
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: N |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: t |
