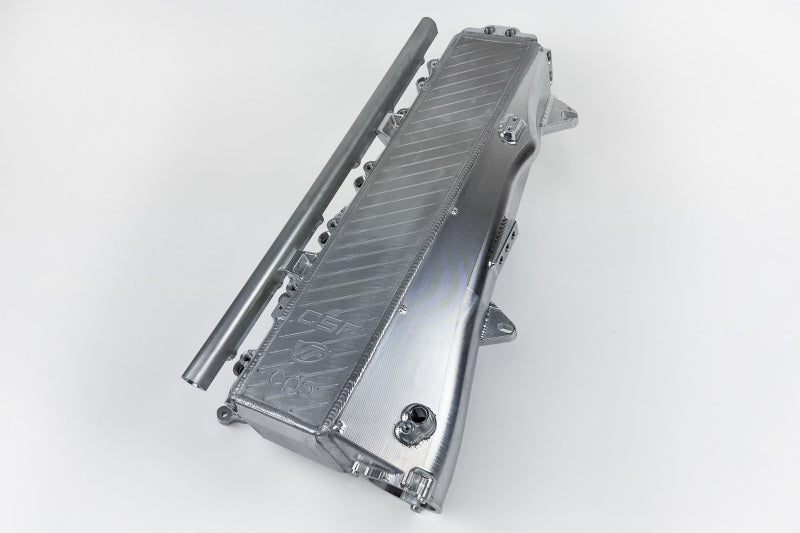

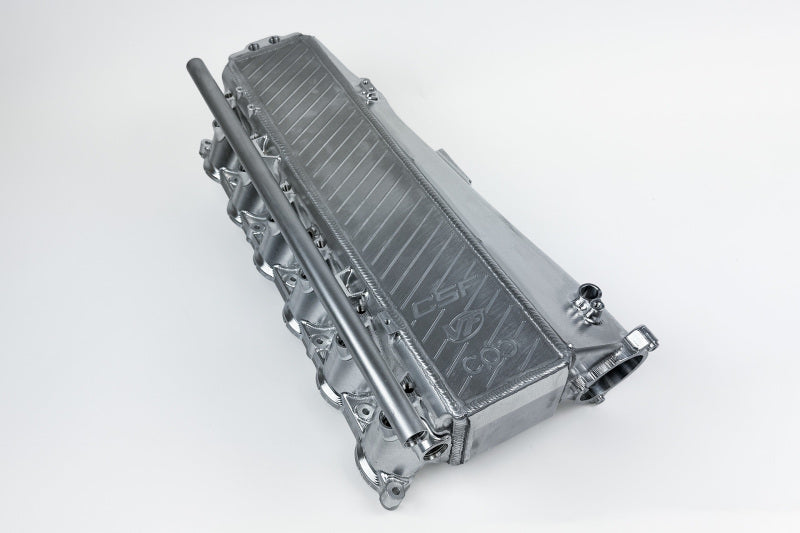

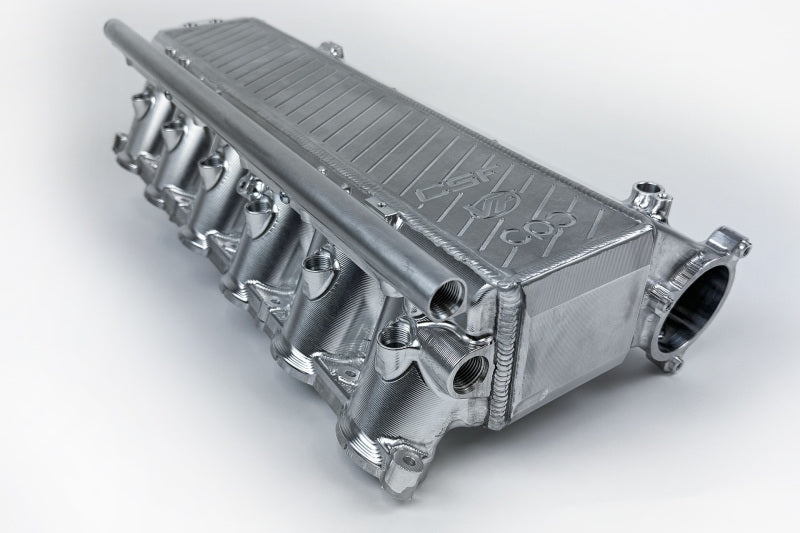

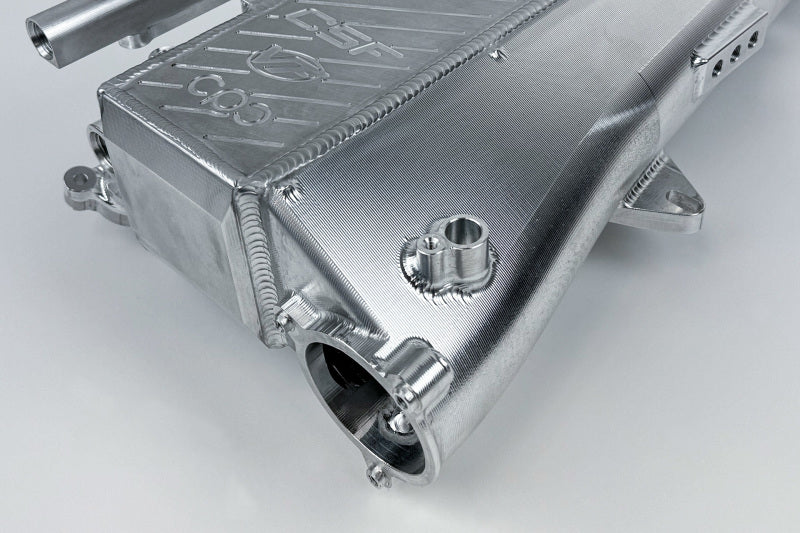

CSF BMW Gen 1 B58 Charge-Air-Cooler Manifold - Machined Billet Aluminum

The OEM charge-air-cooler manifold for the B58 engine is adequate in cars with little or no modifications. However, it starts to really its weaknesses in cars that have bolt-on modifications, turbo upgrades, increased fueling (such as port injection), and performance tuning. In addition, the OEM intercooler system has been known to suffer from heat soak in demanding racing conditions such as time attack, endurance racing, drag racing, and drifting, as well as spirited driving on the street. This can cause the car to pull timing out of the engine due to high intake air temperatures (IATs). This can send the car into "limp mode" once temperatures reach a certain threshold. In high boost applications the OEM manifold is also prone to failing at the crimp on gasket joining of the core and tanks.
With the larger and more efficient intercooler performance, lower pressure drop, included fuel rail & kit for top feed port injection, and other industry-leading features, the CSF Manifold allows Gen 1 B58 owners to maximize performance.
The CSF #8300 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

• Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection - Allows for Even Spray Distribution and Control for Maximum Performance and Engine Protection


• Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core - Double the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)


• Easy Access to Spin-Off Oil Filter for Quick Oil Changes - No Need to Uninstall Manifold Every Oil Change - Counter Balanced Design for Optimized Airflow


• Designed in SolidWorks Using Computational Fluid Dynamics (CFD) - Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core


• Comes Finished in Raw Billet Aluminum (Available in Thermal Black Heat Dispersion Cerakote - CSF #8300B or Custom Finishes - CSF #8300C)

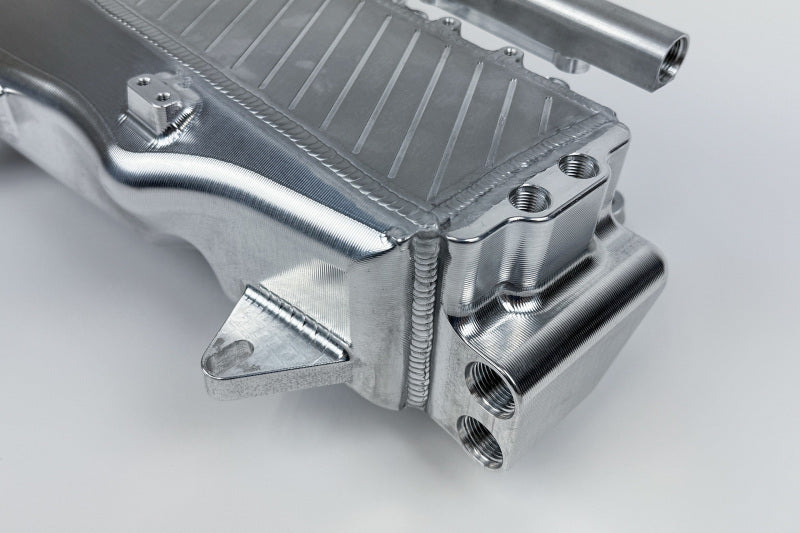

• Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System

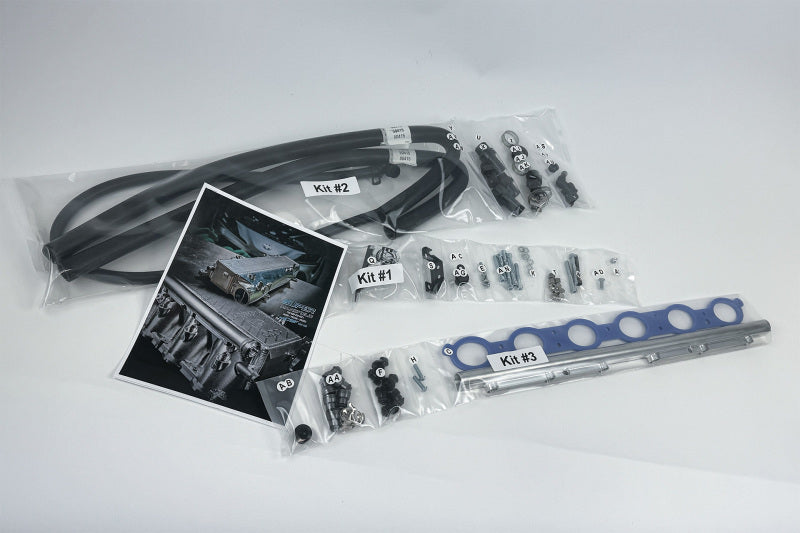

• Includes Hardware and Installation Kit with Picture Diagrams Containing 32 Different Parts for Easy Installation


• Included KIYLEX Thermal Rejection Manifold Spacer - Proven to lower intake manifold temperatures by up to 15%

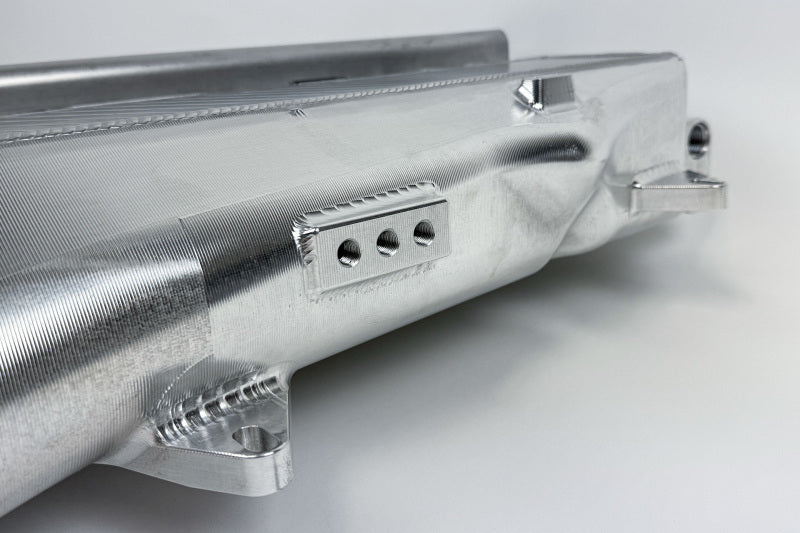

• Integrated Sensor Pad with Three 1/8" NPT Ports to Measure Additional Parameters


• Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia


• Improved slotted mounting holes on throttle body side for easier installation.

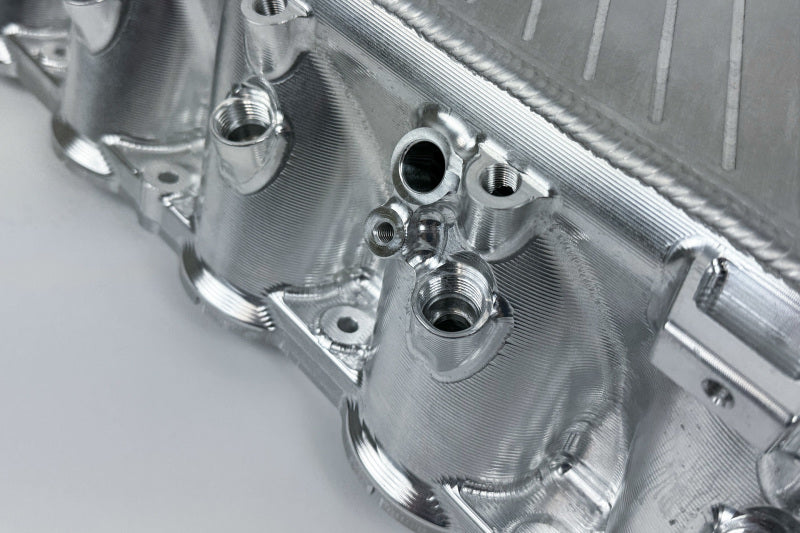

• Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)


• Significantly Lower Pressure Drop Across the Core Compared to OEM


• Plug-and-Play design, Requiring No Modifications to Install

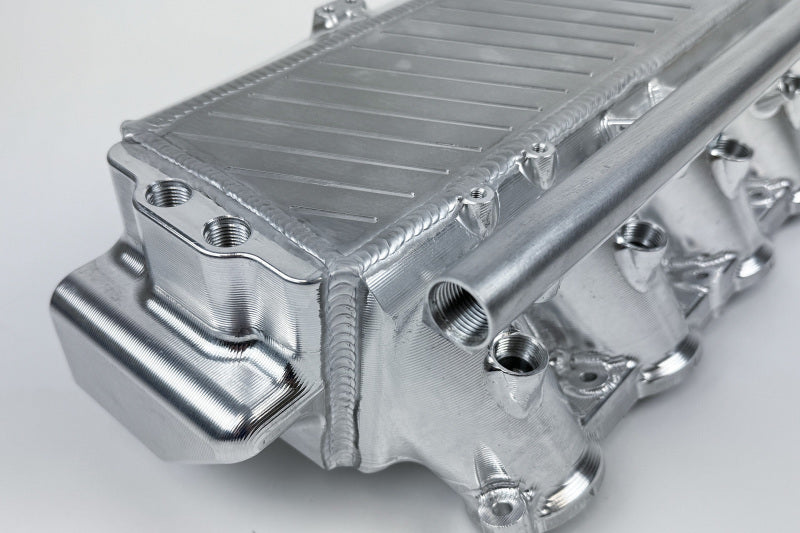

• Included Optional Fuel Rail for Top Feed Port Injection

Fitment:
2016 BMW 340i Base
2016 BMW 340i xDrive Base
2017 BMW 340i Base
2017 BMW 340i GT xDrive Base
2017 BMW 340i xDrive Base
2017 BMW 440i Base
2017 BMW 440i Gran Coupe Base
2017 BMW 440i xDrive Base
2017 BMW 440i xDrive Gran Coupe Base
2017 BMW 540i Base
2017 BMW 540i xDrive Base
2017 BMW 740i Base
2017 BMW 740i xDrive Base
2017 BMW M240i xDrive Base
2018 BMW 340i Base
2018 BMW 340i GT xDrive Base
2018 BMW 340i xDrive Base
2018 BMW 440i Base
2018 BMW 440i Gran Coupe Base
2018 BMW 440i xDrive Base
2018 BMW 440i xDrive Gran Coupe Base
2018 BMW 540i Base
2018 BMW 540i xDrive Base
2018 BMW 640i xDrive Gran Turismo Base
2018 BMW 740i Base
2018 BMW 740i xDrive Base
2018 BMW M240i Base
2018 BMW M240i xDrive Base
2018 BMW X3 M40i
2019 BMW 340i GT xDrive Base
2019 BMW 440i Base
2019 BMW 440i Gran Coupe Base
2019 BMW 440i xDrive Base
2019 BMW 440i xDrive Gran Coupe Base
2019 BMW 540i Base
2019 BMW 540i xDrive Base
2019 BMW 640i xDrive Gran Turismo Base
2019 BMW 740i Base
2019 BMW 740i xDrive Base
2019 BMW M240i Base
2019 BMW M240i xDrive Base
2019 BMW X3 M40i
2019 BMW X4 M40i
2020 BMW 440i Base
2020 BMW 440i Gran Coupe Base
2020 BMW 440i xDrive Base
2020 BMW 440i xDrive Gran Coupe Base
2020 BMW M240i Base
2020 BMW M240i xDrive Base
2021 BMW M240i Base
2021 BMW M240i xDrive Base
