No shipping to California due to CARB regulation.
The supplied hardware kit includes all of the brackets, bolts, washers, and CNC machined fittings for installation. This is an industry-exclusive feature to the CSF x VF Engineering design, and was extremely difficult to not only engineer, but to manufacture as well. An array of items come vacuum packaged with corresponding letters listed on an easy to use Bill-of-Materials List (BOM) along with exploded diagrams and a simple order of operation procedure list to follow for installation. Made with mechanics, technicians, racers and DIY enthusiasts in mind. This is a Racing Product and intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform

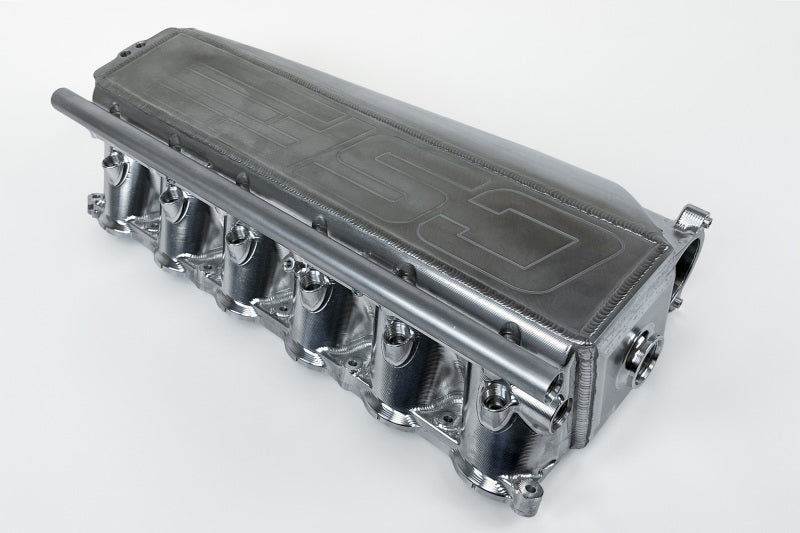

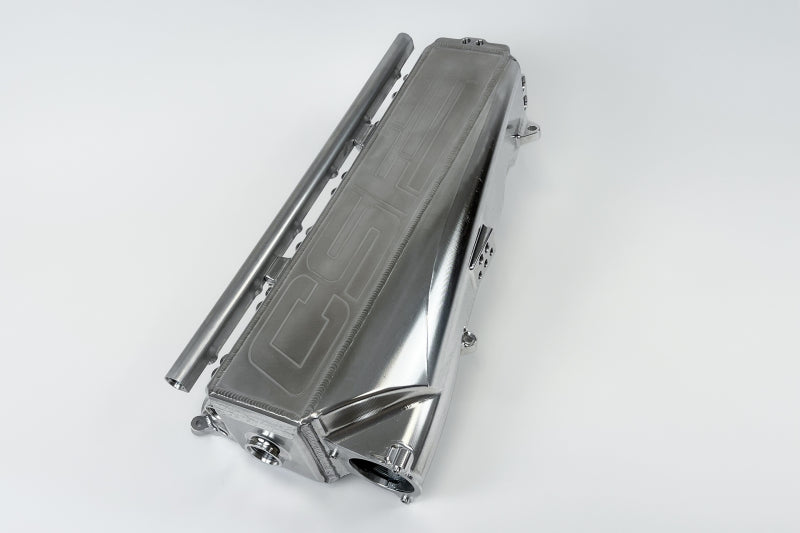

With the largest and most efficient intercooler performance, lower pressure drop, port injection, and other industry-leading features, the CSF Race X Manifold allows Gen 2 B58 owners to maximize performance.
The CSF #8400 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

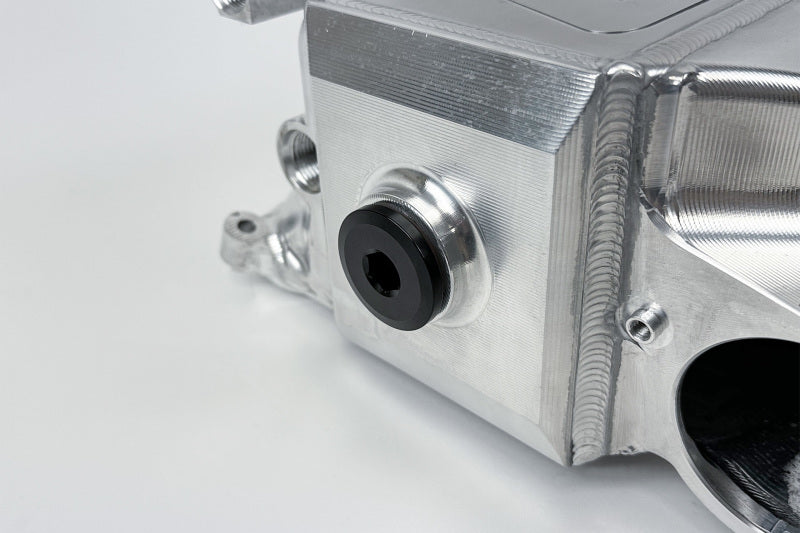

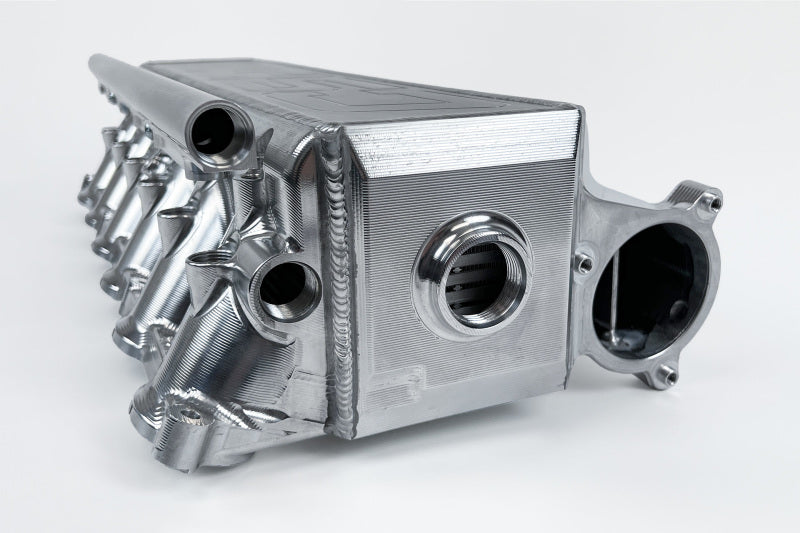

- Core can be setup for dual or single pass: The -16 ORB bung on front water end plate can be used to adjust the flow configuration to single-pass and/or to be used with an ice-box setup. Includes CNC machined plug for dual-pass configuration
- Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core - 25% larger than the standard Gen-2 B58 Super Manifold (CSF#8200) - 15 Rows of Water Cooling vs. CSF #8200 12 Rows and OEM 6 Rows

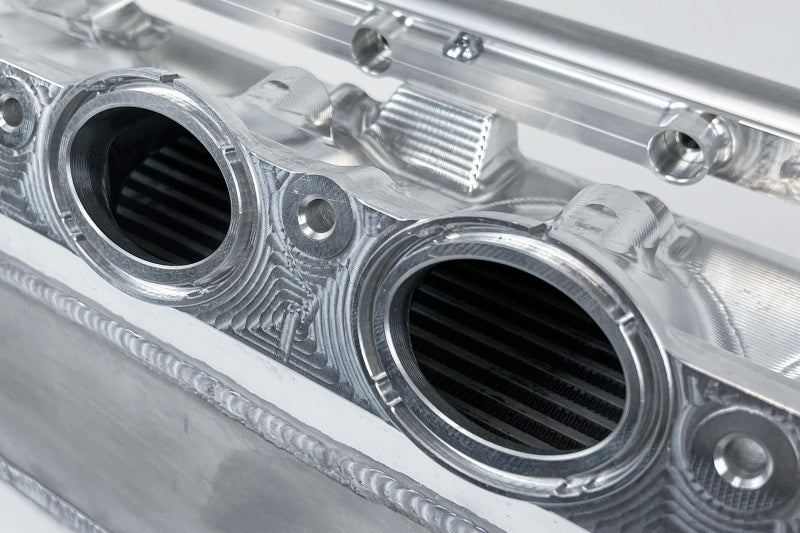

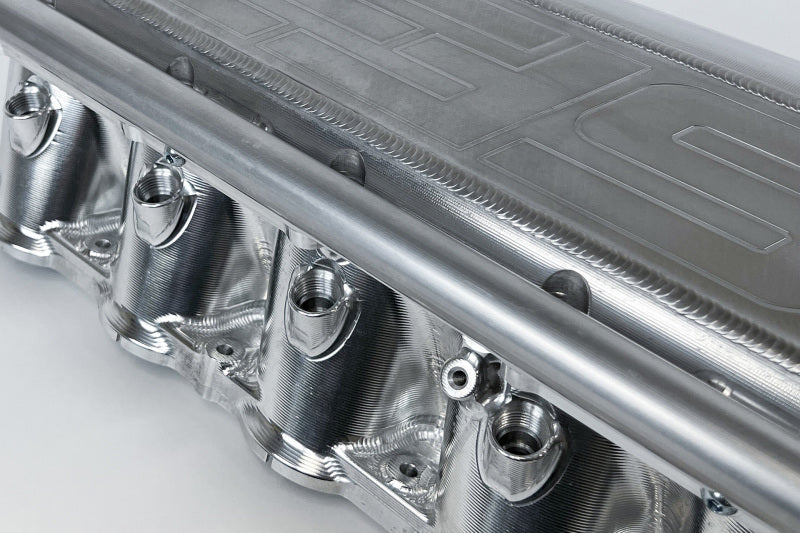

- Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection - Allows for Even Spray Distribution and Control for Maximum Performance
- Some modifications to install - this product is intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform
- Comes Finished in Raw Billet Aluminum (Available in Thermal Black Heat Dispersion Cerakote - CSF #8400B or Custom Finishes - CSF #8400C)

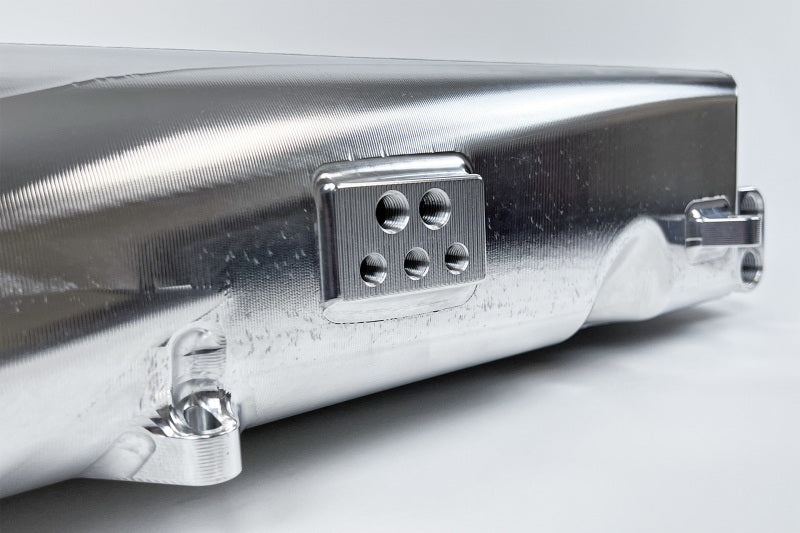

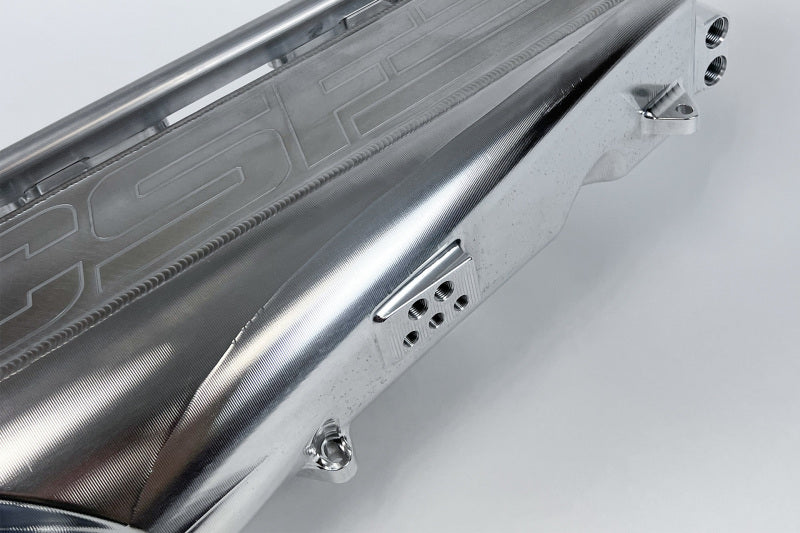

- Integrated Sensor Pad with Two 1/4" and Three 1/8" NPT Ports to Measure Additional Parameters or Extra Sources of Vacuum
- Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Bleeding
- Included KIYLEX Thermal Rejection Manifold Spacer - Proven to lower intake manifold temperatures by up to 15%
- Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
- Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
- Includes Hardware and Installation Kit with Picture Diagrams and Instructions
- Improved slotted mounting holes on throttle body side for easier installation
- Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
- Easy Access to Spin-Off Oil Filter for Quick Oil Changes
- Included Fuel Rail for Top Feed Port Injection
Fitment:
2019 BMW X5 xDrive40i
2019 BMW X7 xDrive40i
2020 BMW 540i Base
2020 BMW 540i xDrive Base
2020 BMW 740i Base
2020 BMW 740i xDrive Base
2020 BMW 745e xDrive Base
2020 BMW 840i Base
2020 BMW 840i Gran Coupe Base
2020 BMW 840i xDrive Base
2020 BMW 840i xDrive Gran Coupe Base
2020 BMW M340i Base
2020 BMW M340i xDrive Base
2020 BMW X3 M40i
2020 BMW X4 M40i
2020 BMW X5 sDrive40i
2020 BMW X5 xDrive40i
2020 BMW X6 sDrive40i
2020 BMW X6 xDrive40i
2020 BMW X7 xDrive40i
2020 Toyota GR Supra Base
2020 Toyota GR Supra Launch Edition
2020 Toyota GR Supra Premium
2021 BMW 540i Base
2021 BMW 540i xDrive Base
2021 BMW 740i Base
2021 BMW 740i xDrive Base
2021 BMW 745e xDrive Base
2021 BMW 840i Base
2021 BMW 840i Gran Coupe Base
2021 BMW 840i xDrive Base
2021 BMW 840i xDrive Gran Coupe Base
2021 BMW M340i Base
2021 BMW M340i xDrive Base
2021 BMW M440i Base
2021 BMW M440i xDrive Base
2021 BMW X3 M40i
2021 BMW X4 M40i
2021 BMW X5 sDrive40i
2021 BMW X5 xDrive40i
2021 BMW X5 xDrive45e
2021 BMW X6 sDrive40i
2021 BMW X6 xDrive40i
2021 BMW X7 xDrive40i
2021 Toyota GR Supra A91 Edition
2021 Toyota GR Supra Base
2021 Toyota GR Supra Premium
2022 BMW 540i Base
2022 BMW 540i xDrive Base
2022 BMW 740i Base
2022 BMW 740i xDrive Base
2022 BMW 745e xDrive Base
2022 BMW 840i Base
2022 BMW 840i Gran Coupe Base
2022 BMW 840i xDrive Base
2022 BMW 840i xDrive Gran Coupe Base
2022 BMW M340i Base
2022 BMW M340i xDrive Base
2022 BMW M440i Base
2022 BMW M440i Gran Coupe Base
2022 BMW M440i xDrive Base
2022 BMW M440i xDrive Gran Coupe Base
2022 BMW X3 M40i
2022 BMW X4 M40i
2022 BMW X5 sDrive40i
2022 BMW X5 xDrive40i
2022 BMW X5 xDrive45e
2022 BMW X6 xDrive40i
2022 BMW X7 xDrive40i
2022 Toyota GR Supra A91 Edition
2022 Toyota GR Supra Base
2022 Toyota GR Supra Premium
2023 BMW 540i Base
2023 BMW 540i xDrive Base
2023 BMW 740i Base
2023 BMW 840i Base
2023 BMW 840i Gran Coupe Base
2023 BMW 840i xDrive Base
2023 BMW 840i xDrive Gran Coupe Base
2023 BMW M240i Base
2023 BMW M240i xDrive Base
2023 BMW M340i Base
2023 BMW M340i xDrive Base
2023 BMW M440i Base
2023 BMW M440i Gran Coupe Base
2023 BMW M440i xDrive Base
2023 BMW M440i xDrive Gran Coupe Base
2023 BMW X3 M40i
2023 BMW X4 M40i
2023 BMW X5 sDrive40i
2023 BMW X5 xDrive40i
2023 BMW X5 xDrive45e
2023 BMW X6 xDrive40i
2023 BMW X7 xDrive40i
2023 Toyota GR Supra A91 Edition
2023 Toyota GR Supra Base
2023 Toyota GR Supra Premium
2024 BMW 740i Base
2024 BMW 840i Base
2024 BMW 840i Gran Coupe Base
2024 BMW 840i xDrive Base
2024 BMW 840i xDrive Gran Coupe Base
2024 BMW M340i Base
2024 BMW M340i xDrive Base
2024 BMW M440i Base
2024 BMW M440i Gran Coupe Base
2024 BMW M440i xDrive Base
2024 BMW M440i xDrive Gran Coupe Base
2024 BMW X3 M40i
2024 BMW X4 M40i
2024 BMW X5 sDrive40i
2024 BMW X6 xDrive40i
2024 BMW X7 xDrive40i
2024 Toyota GR Supra 45th Anniversary Edition
2024 Toyota GR Supra Base
2024 Toyota GR Supra Premium
|
