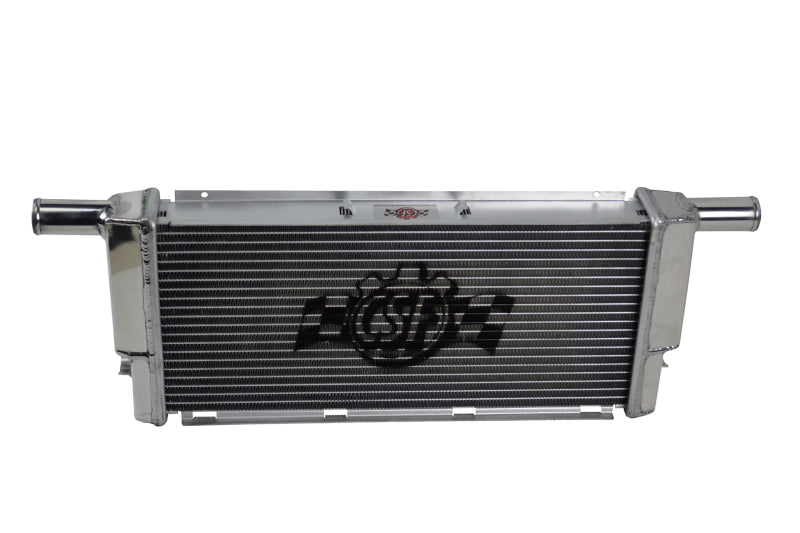

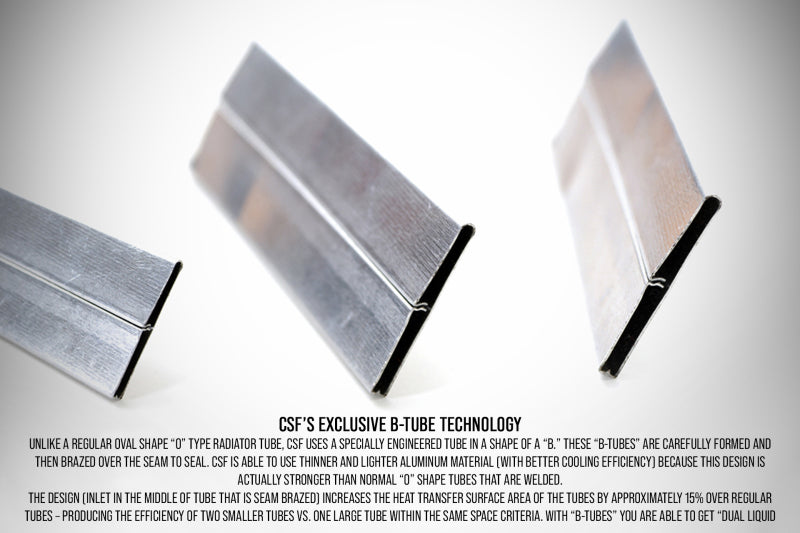

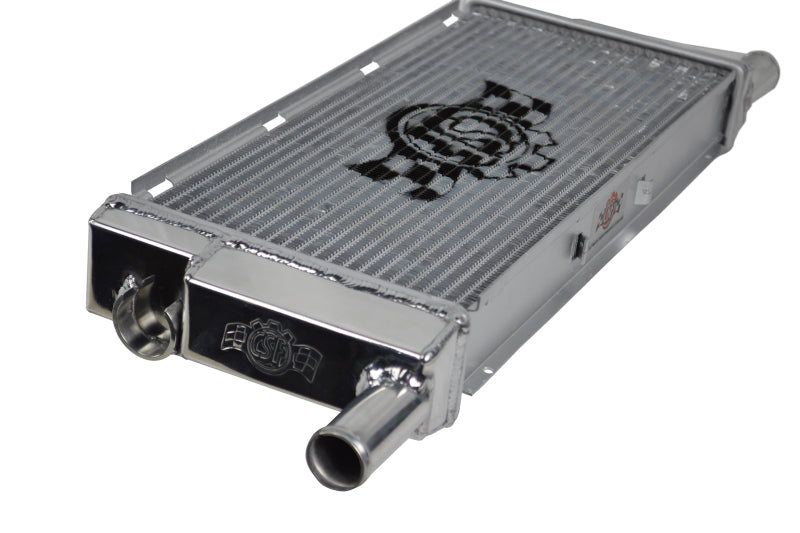

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 981 Cayman/Boxster running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
CSF manufactures the most advanced and efficient radiator in the industry for your 981 Cayman/Boxster. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

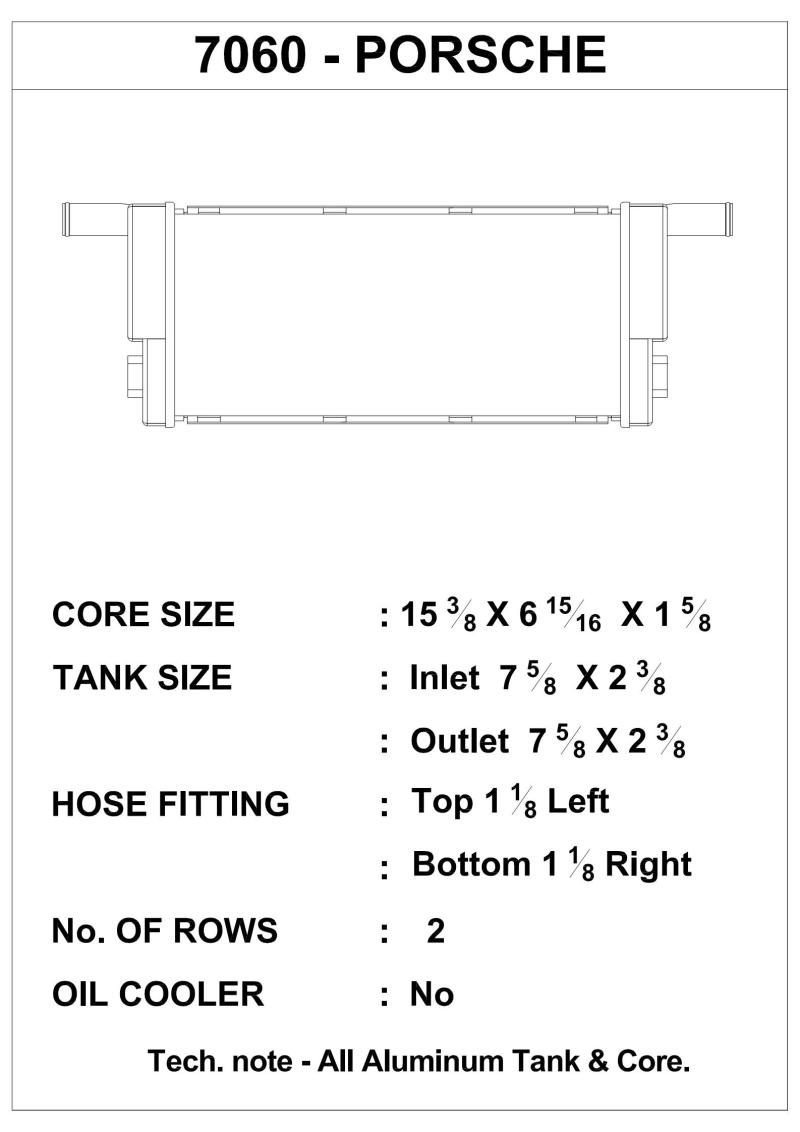

The CSF #7060 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
- High-Performance Upgrade Suitable for Professional Racing, Street Performance, or OEM Replacement
- 2-Row 42mm Core Featuring CSF's Exclusive B-Tube Technology (+20% Efficiency)
- Plug-and-Play "Drop-in" Fit with No Modifications Required for Installation

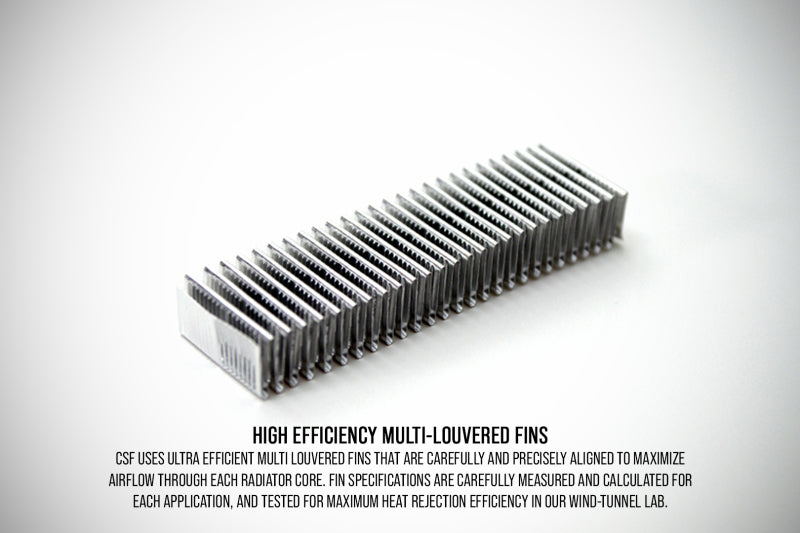

- 6.5mm Fin Height w/ Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined Brackets and Fittings for Superb Fit and Durability
- All-Aluminum Design with 100% TIG-Welded End Tanks
- OEM-Style Machined Inlet/Outlet Connections
- Accepts OEM AC Condenser and Fan Shroud
- Individually Leak and Pressure Tested
- Smooth Satin Finish
Fitment:
2012 Porsche 911 Carrera
2012 Porsche 911 Carrera S
2012 Porsche Boxster Base
2012 Porsche Boxster S
2012 Porsche Boxster S Black Edition
2012 Porsche Boxster Spyder
2013 Porsche 911 Carrera
2013 Porsche 911 Carrera 4
2013 Porsche 911 Carrera 4S
2013 Porsche 911 Carrera S
2013 Porsche Boxster Base
2013 Porsche Boxster S
2014 Porsche 911 Carrera
2014 Porsche 911 Carrera 4
2014 Porsche 911 Carrera 4S
2014 Porsche 911 Carrera S
2014 Porsche 911 Targa 4
2014 Porsche 911 Targa 4S
2014 Porsche Boxster Base
2014 Porsche Boxster S
2014 Porsche Cayman Base
2014 Porsche Cayman S
2015 Porsche 911 Carrera
2015 Porsche 911 Carrera 4
2015 Porsche 911 Carrera 4 GTS
2015 Porsche 911 Carrera 4S
2015 Porsche 911 Carrera GTS
2015 Porsche 911 Carrera S
2015 Porsche 911 Targa 4
2015 Porsche 911 Targa 4S
2015 Porsche Boxster Base
2015 Porsche Boxster GTS
2015 Porsche Boxster S
2015 Porsche Cayman Base
2015 Porsche Cayman GTS
2015 Porsche Cayman S
2016 Porsche 911 Carrera
2016 Porsche 911 Carrera 4
2016 Porsche 911 Carrera 4 GTS
2016 Porsche 911 Carrera 4S
2016 Porsche 911 Carrera GTS
2016 Porsche 911 Carrera S
2016 Porsche 911 Targa 4
2016 Porsche 911 Targa 4 GTS
2016 Porsche 911 Targa 4S
2016 Porsche Boxster Base
2016 Porsche Boxster Black Edition
2016 Porsche Boxster GTS
2016 Porsche Boxster S
2016 Porsche Cayman Base
2016 Porsche Cayman Black Edition
2016 Porsche Cayman GTS
2016 Porsche Cayman S
2017 Porsche 718 Boxster Base
2017 Porsche 718 Boxster S
2017 Porsche 718 Cayman Base
2017 Porsche 718 Cayman S
2017 Porsche 911 Carrera
2017 Porsche 911 Carrera 4
2017 Porsche 911 Carrera 4S
2017 Porsche 911 Carrera S
2017 Porsche 911 Targa 4
2017 Porsche 911 Targa 4S
2018 Porsche 718 Boxster Base
2018 Porsche 718 Boxster GTS
2018 Porsche 718 Boxster S
2018 Porsche 718 Cayman Base
2018 Porsche 718 Cayman GTS
2018 Porsche 718 Cayman S
2018 Porsche 911 Carrera
2018 Porsche 911 Carrera 4
2018 Porsche 911 Carrera 4 GTS
2018 Porsche 911 Carrera 4S
2018 Porsche 911 Carrera GTS
2018 Porsche 911 Carrera S
2018 Porsche 911 Carrera T
2018 Porsche 911 Targa 4
2018 Porsche 911 Targa 4 GTS
2018 Porsche 911 Targa 4S
2019 Porsche 718 Boxster Base
2019 Porsche 718 Boxster GTS
2019 Porsche 718 Boxster S
2019 Porsche 718 Cayman Base
2019 Porsche 718 Cayman GTS
2019 Porsche 718 Cayman S
2019 Porsche 911 Carrera
2019 Porsche 911 Carrera 4
2019 Porsche 911 Carrera 4 GTS
2019 Porsche 911 Carrera 4S
2019 Porsche 911 Carrera GTS
2019 Porsche 911 Carrera S
2019 Porsche 911 Carrera T
2019 Porsche 911 Targa 4
2019 Porsche 911 Targa 4 GTS
2019 Porsche 911 Targa 4S
2020 Porsche 718 Boxster Base
2020 Porsche 718 Boxster S
2020 Porsche 718 Boxster T
2020 Porsche 718 Cayman Base
2020 Porsche 718 Cayman S
2020 Porsche 718 Cayman T
2021 Porsche 718 Boxster Base
2021 Porsche 718 Boxster S
2021 Porsche 718 Boxster T
2021 Porsche 718 Cayman Base
2021 Porsche 718 Cayman S
2021 Porsche 718 Cayman T
2022 Porsche 718 Boxster Base
2022 Porsche 718 Boxster S
2022 Porsche 718 Boxster T
2022 Porsche 718 Cayman Base
2022 Porsche 718 Cayman S
2022 Porsche 718 Cayman T
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: N |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: t |
