ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.

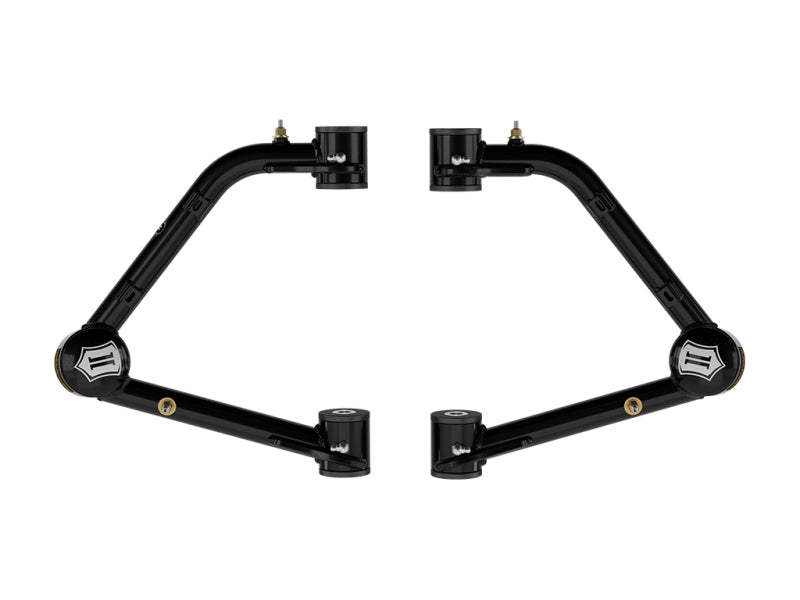

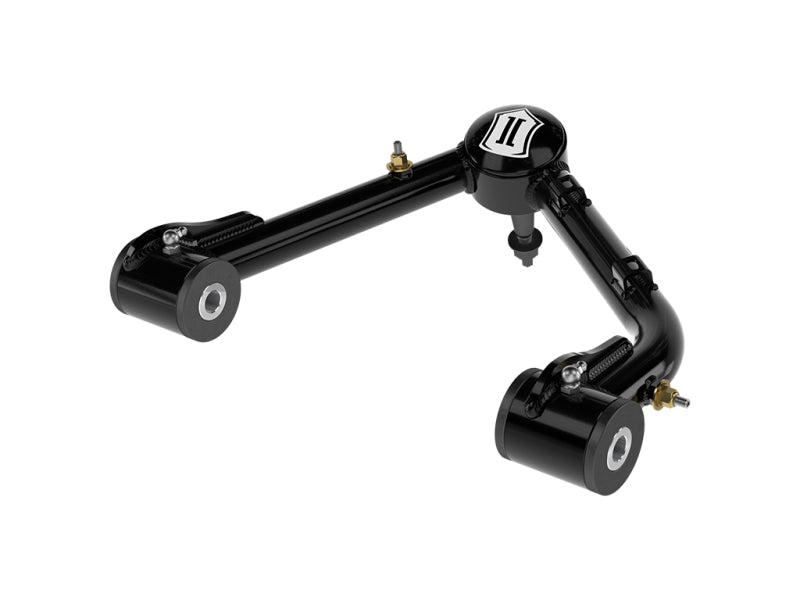

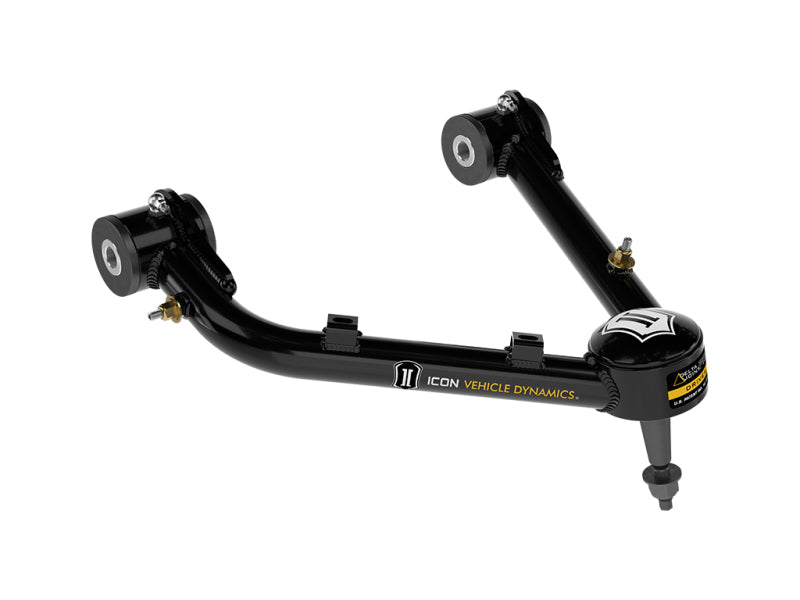

ICON tubular UCAs feature 1026 DOM tube construction, polyurethane, and ICON’s rebuildable Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.
TECH NOTE: Compatible with 1.75-2.5" front lift over stock on GMC Canyon AT4, Denali, Elevation, and Chevrolet Colorado Trail Boss
- Built in added caster for better handling on lifted vehicles
- Delta Joint PRO allows maximum articulation without binding
- 1026 DOM tube construction with black powder coat finish
- CNC machined housings for bushings and Delta Joint PRO
- Delta Joint PRO is 100% serviceable and rebuildable
- Includes billet dust caps for Delta Joint PRO
- Serviceable dual stage pivot bushings
Fitment:
2023 Chevrolet Colorado Trail Boss
2023 Chevrolet Colorado ZR2
2023 GMC Canyon AT4
2023 GMC Canyon AT4X
2023 GMC Canyon Denali
2023 GMC Canyon Elevation
2024 Chevrolet Colorado Trail Boss
2024 Chevrolet Colorado ZR2
2024 GMC Canyon AT4
2024 GMC Canyon AT4X
2024 GMC Canyon Denali
2024 GMC Canyon Elevation
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: t |
