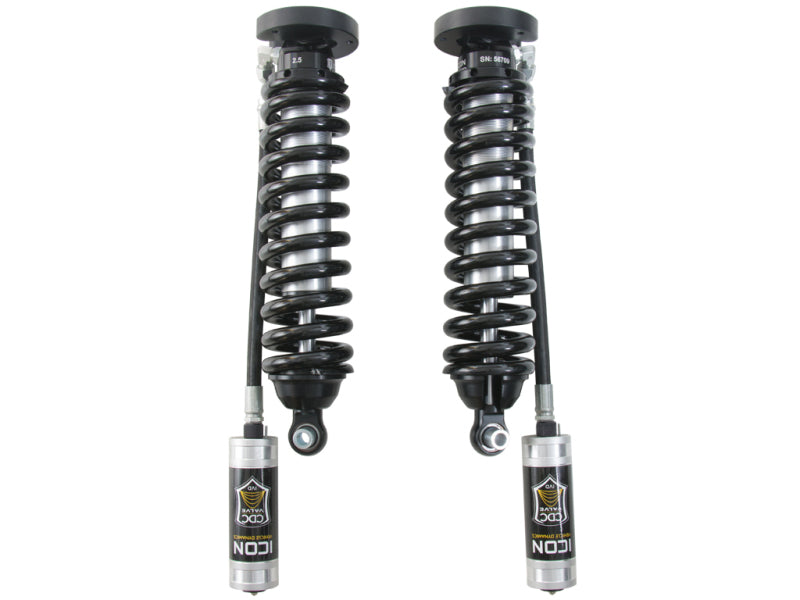

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2016-2023 Nissan Titan XD. These adjustable coilovers allow up to 2.5-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Nissan Titan XD.
Adjustable coilovers allow up to 2.5-3” of lift allowing the use of larger wheel and tire combos. ICON’s Vehicle-specific shock length and valving along with the 2.5” shock body yield max travel with superior ride quality and performance
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- Approximately 32% increased front wheel travel and improved ride quality over stock
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- Height-adjustable coilovers offer 2.5-3" of front lift height adjustment
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Vehicle specific tuned for superior shock damping and control
- 6061 Aircraft grade aluminum CNC machined components
- Fully rebuildable and re-tunable
- ICON engineered coil springs
Fitment:
2016 Nissan Titan XD Platinum Reserve
2016 Nissan Titan XD PRO-4X
2016 Nissan Titan XD S
2016 Nissan Titan XD SL
2016 Nissan Titan XD SV
2017 Nissan Titan XD Platinum Reserve
2017 Nissan Titan XD PRO-4X
2017 Nissan Titan XD S
2017 Nissan Titan XD SL
2017 Nissan Titan XD SV
2018 Nissan Titan XD Platinum Reserve
2018 Nissan Titan XD PRO-4X
2018 Nissan Titan XD S
2018 Nissan Titan XD SL
2018 Nissan Titan XD SV
2019 Nissan Titan XD Platinum Reserve
2019 Nissan Titan XD PRO-4X
2019 Nissan Titan XD S
2019 Nissan Titan XD SL
2019 Nissan Titan XD SV
2020 Nissan Titan XD Platinum Reserve
2020 Nissan Titan XD PRO-4X
2020 Nissan Titan XD S
2020 Nissan Titan XD SL
2020 Nissan Titan XD SV
2021 Nissan Titan XD Platinum Reserve
2021 Nissan Titan XD PRO-4X
2021 Nissan Titan XD S
2021 Nissan Titan XD SL
2021 Nissan Titan XD SV
2022 Nissan Titan XD Platinum Reserve
2022 Nissan Titan XD PRO-4X
2022 Nissan Titan XD S
2022 Nissan Titan XD SL
2022 Nissan Titan XD SV
2023 Nissan Titan XD Platinum Reserve
2023 Nissan Titan XD PRO-4X
2023 Nissan Titan XD S
2023 Nissan Titan XD SV
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: t |
